Original price was: €219,00.€120,45Current price is: €120,45. + VAT
In stock
In stock
| Series | HMD |
|---|---|
| Code | HD100GR |
| Type | HMD.2/GR |
| HS code | 85369010 |
| Colour | grey |
| TECHNICAL FEATURES | |
| Function/Type | 2 levels feed-through |
| Rated cross-section | 2.5 mm² |
| Connecting capacity | |
| Flexible wire | 0.2-4 mm² |
| Rigid wire | 0.2-4 mm² |
| Wire with ferrule - ferrule type | 2.5 mm² – WP25/14 |
| Electrical characteristics according to IEC EN standard | |
| Maximum voltage AC/DC | 630 V |
| Maximum current (rated cross-section) | 24 A |
| Caliber | A3 |
| Electrical characteristics according to UL Standard | |
| Maximum voltage AC/DC | 300 V |
| Maximum current (rated cross-section) | 20 A |
| Section (min-max) | 24-12 (AWG) |
| Electrical characteristics according to ATEX directive and IEC Ex standard | |
| Maximum voltage AC/DC | 400 V |
| Maximum current (rated cross-section) | 24 A |
| Operating temperature Min/Max | -40 °C / +80 °C |
| Rated impulse withstand voltage / pollution degree | 8 kV / 3 |
| Insulation stripping length | 10 mm |
| Width (pitch) | 5.2 mm |
| Length | 91 mm |
| Height mounted on TH35-7.5/TH35-15/G32 | 49 / 56 / – mm |
| Insulation material temperature index (EN 60216-1) | 130 °C |
| Plastic material | Polyamide UL94V-0 |
| ACCESSORIES | |
| End section | |
| Grey | HMD/PT/GR (cod. HD101GR) |
| Blue | – |
| Thickness | 1.5 mm |
| Cross-connection | |
| Model A) | PH/2.5-4 (cod. PH100) |
| Model B) | PHD/2 (cod. PHD02) |
| Rated current carrying capacity IEC/ATEX | 24 A / 24 A |
| Cross-connection identification strip | ‒ |
| Internal removable cross-connection | PHD/2 (cod. PHD02) |
| Coloured partition plate | DFH/4/R (cod. DH04R) |
| Cross-connection barrier | ‒ |
| Test plug | ‒ |
| Modular test plug | ‒ |
| End section for modular test plug | ‒ |

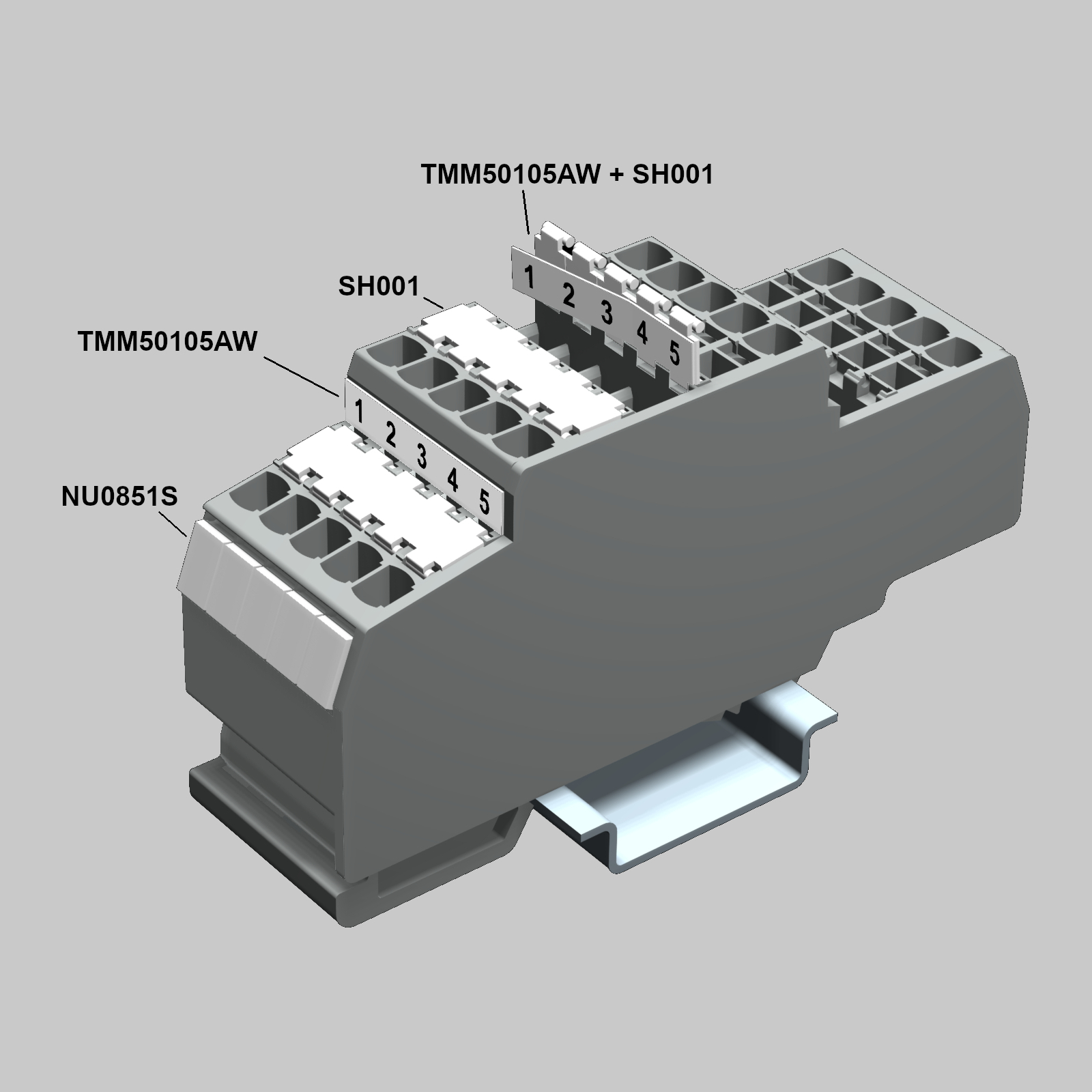

| Marking | |
| Single marking tag | CNU/8/51 (cod. NU0851S) (only on lower level) |
| Single marking tag for pitch insertion | CNU/8/51 (cod. NU0851S) (only on lower level), SHZ/2 (cod. SH001) + TMM50105AW (cod. TMM50105AW) |
| End bracket | |
| TH35 screw type | BT/3 (cod. BT003) |
| TH35 snap-fit type | BTO (cod. BT007) |
| TH35 and G32 snap-fit type | BTU (cod. BT005) |
| DIN rail according to IEC 60715/TH35 | PR/3/.. |
| APPROVALS AND MARKINGS |      |
For further information see PDF catalog
