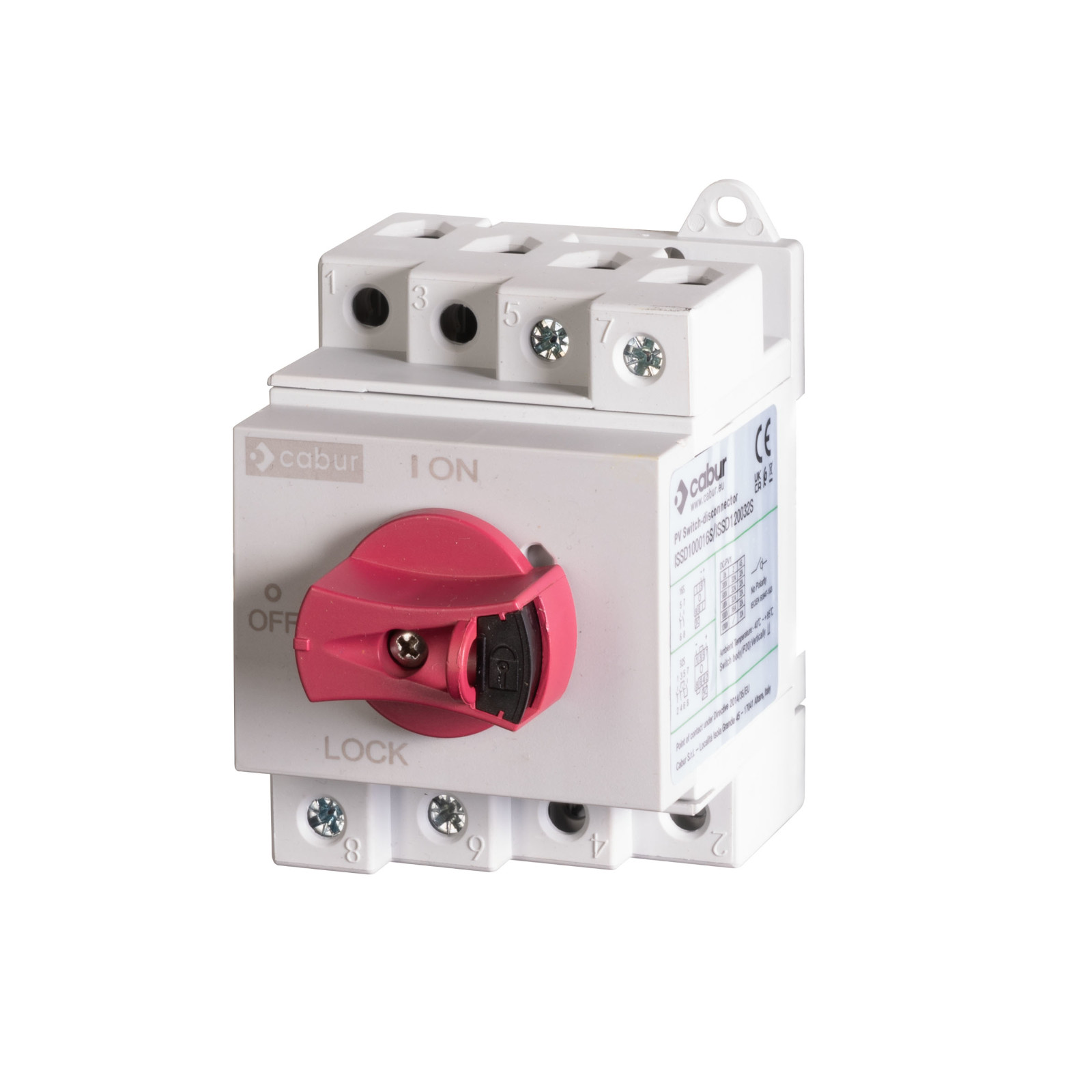

| Series | ISSD |
|---|---|
| Code | ISSD100016S |
| HS code | 85365080 |
| TECHNICAL FEATURES | |
| Number of poles | 2 |
| Utilization category | DC-PV1 / DC-PV2 |
| Rated Insulation Voltage IEC/EN | 1000 Vdc |
| Rated impulse withstand voltage Uimp | 8 kV |
| Continuous current | 16 A |
| Rated short-circuit current Icw | 1000 A |
| Max. power dissipation for poles | 0.30 W |
| Mechanical life | 10000 cycles |
| Nut Cap locking force | 1.2 – 1.8 Nm |
| Cables Section | |
| Solid Cable | 4 – 16 mm2 |
| Flexible cable | 4 – 10 mm2 |
| Working temperature | -40…+85 °C |
| Ambient temperature range (storage) | -40…+85°C |
| Lockable | Yes |
| Protection degree | IP66 |
| Overvoltage category / pollution degree | II |
| Standard compliancy | IEC/EN 60947-3:2021 |

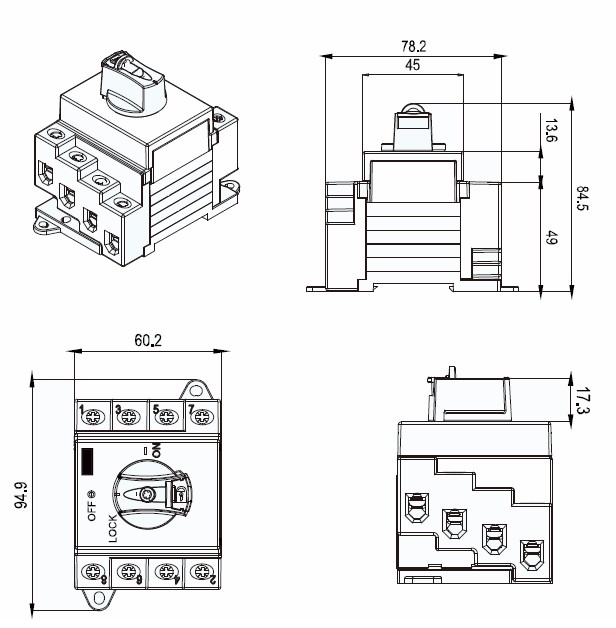

| Dimension | 94.9×60.2×84.5 mm |
For further information see PDF catalog
