€47.10 + VAT
In stock
In stock

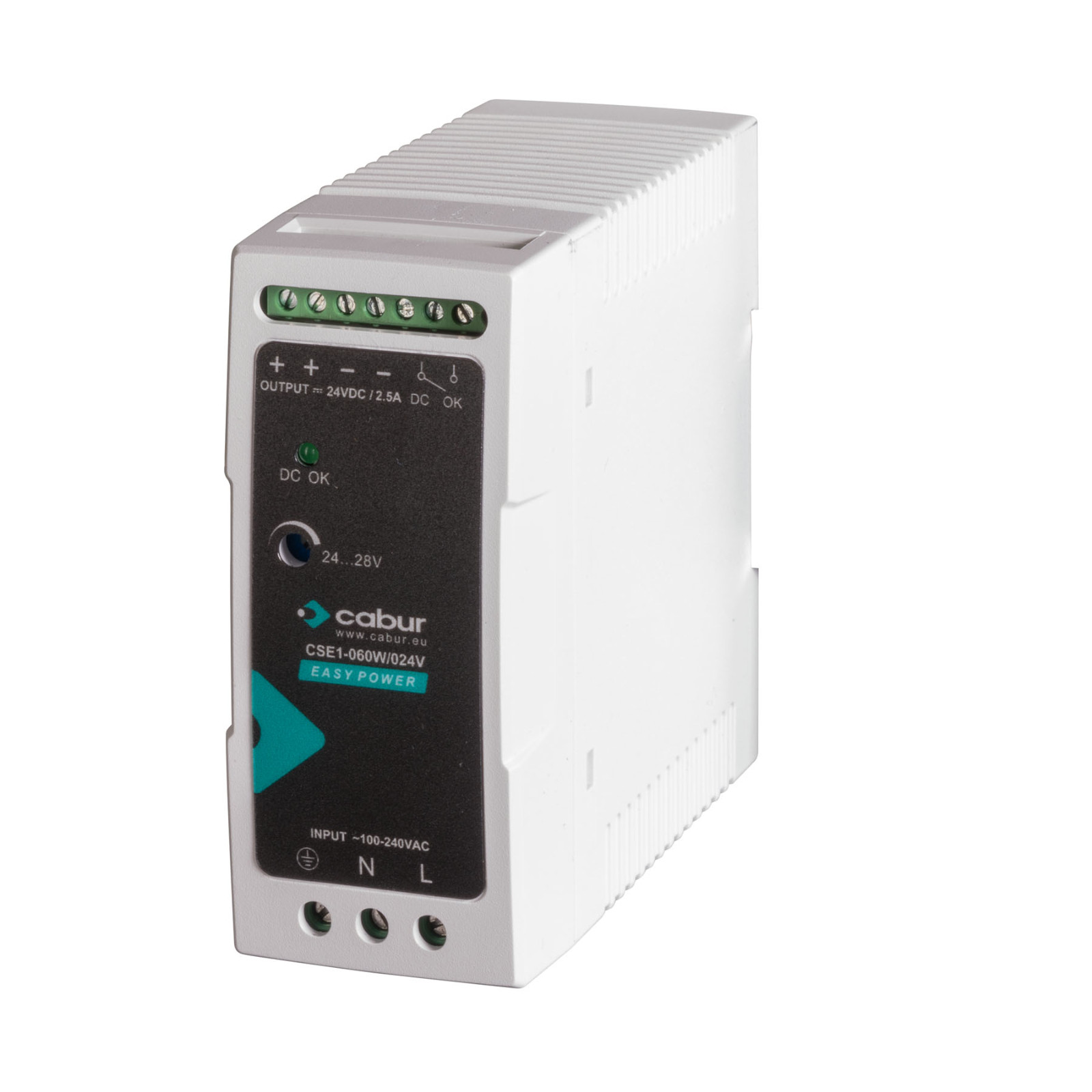

| Series | EASY POWER LINE |
|---|---|
| Code | XCSE1060W024VAA |
| Type | CSE1-060W/024V/AA |
| HS code | 85044083, 8504401400 |
| INPUT TECHNICAL DATA | |
| Input rated voltage | 120–230 Vac |
| Input voltage AC | 90…264 Vac |
| Input voltage DC | 127…370 Vdc |
| Frequency | 47…63 Hz |
| Current consumption | 1.6 A (115 Vac) / 0.9 A (230 Vac) |
| Inrush peak current | 30 A (115 Vac) / 60 A (230 Vac) |
| Power factor | >0.5 (115 Vac) / >0.4 (230 Vac) |
| Internal protection fuse | T 3.15 A |
| External protection on AC line | MCB: C-3.15 A / Fuse: T 3.15 A |
| OUTPUT TECHNICAL DATA | |
| Output voltage range | 24 Vdc |
| Output adjustable range | 24…28 Vdc |
| Continuous current | 2.5 A |
| Overload limiting | 4.0 A |
| Short circuit peak current | 20 A for 100 ms |
| Ripple @ nominal ratings | 150 mVpp |
| Hold up time | 20 ms (115 Vac) / 50 ms (230 Vac) |
| Status indication | LED "DC OK" |
| Alarm contact | dry contact, max. 1 A |
| Parallel connection | — |
| Redundant parallel connection | possible with external ORing diode |
| GENERAL TECHNICAL DATA | |
| Efficiency | 86% (115 Vac) / 88% (230 Vac) |
| Dissipated power | 10 W (115 Vac) / 8 W (230 Vac) |
| Operating temperature range | -20°C…+70°C (derating -1,6 W/°C >55°C) |
| Input / output isolation | 3 kVac / 60 s |
| Input / ground isolation | 2 kVac / 60 s |
| Output / ground isolation | 0.5 kVac / 60 s |
| Standard / approvals | EN 62368-1, UL508 |
| EMC Standard | EN 55032, EN/IEC 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11 |
| Overvoltage category / pollution degree | III / 2 |
| Protection degree | IP 20 |
| Connection terminal | 1.5 mm² / 1.5 mm² |
| Housing material | UL94V-0 plastic material |
| Dimensions (LxHxD) | 41 x 100 x 92 mm |
| Approximate weight | 0.28 Kg |
| Mounting information | vertical on a rail, 10 mm from adjacent components |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
| Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
| APPROVALS AND MARKINGS |   |
For further information see PDF catalog
