Original price was: €69,60.€38,28Current price is: €38,28. + VAT
In stock
In stock
| Series | EASY POWER LINE |
|---|---|
| Code | XCSE1120W024VAA |

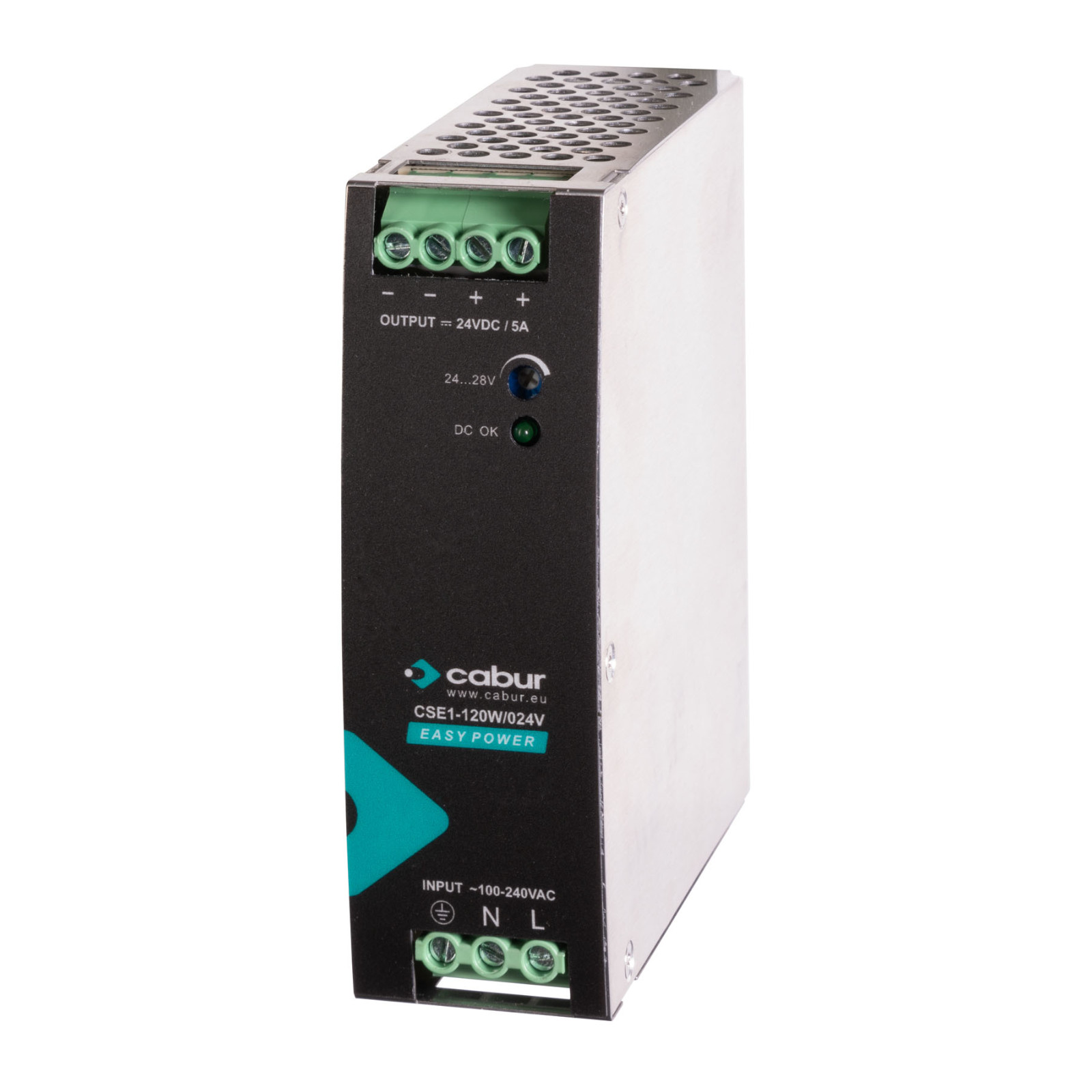

| Type | CSE1-120W/024V/AA |
| HS code | 85044083 |
| INPUT TECHNICAL DATA | |
| Input rated voltage | 120–230 Vac |
| Input voltage AC | 90…264 Vac |
| Input voltage DC | 127…370 Vdc |
| Frequency | 47…63 Hz |
| Current consumption | 2.8 A (115 Vac) / 1.7 A (230 Vac) |
| Inrush peak current | 25 A (115 Vac) / 35 A (230 Vac) |
| Power factor | >0.54 (115 Vac) / >0.43 (230 Vac) |
| Internal protection fuse | T 5 A |
| External protection on AC line | MCB: C-5 / Fuse: T 5 A |
| OUTPUT TECHNICAL DATA | |
| Output voltage range | 24 Vdc |
| Output adjustable range | 24…28 Vdc |
| Continuous current | 5.0 A |
| Overload limiting | 6.0 A |
| Short circuit peak current | 30 A for 100 ms |
| Ripple @ nominal ratings | 120 mVpp |
| Hold up time | 10ms (115 Vac) / 16 ms (230 Vac) |
| Status indication | LED "DC OK" |
| Alarm contact | — |
| Parallel connection | — |
| Redundant parallel connection | possible with external ORing diode |
| GENERAL TECHNICAL DATA | |
| Efficiency | 87% (115 Vac) / 88% (230 Vac) |
| Dissipated power | 18.77 W (115 Vac) / 14.02 W (230 Vac) |
| Operating temperature range | -20°C…+70°C (derating -3 W/°C >50°C) |
| Input / output isolation | 3 kVac / 60 s |
| Input / ground isolation | 2 kVac / 60 s |
| Output / ground isolation | 0.5 kVac / 60 s |
| Safety Standard | EN 62368-1, UL508 |
| EMC Standard | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 61000-3-2, EN 61000-3-3, EN 55032, EN 55035 |
| Overvoltage category / pollution degree | III / 2 |
| Protection degree | IP 20 |
| Connection terminal | 4 mm² / 4 mm² |
| Housing material | aluminium, steel |
| Dimensions (LxHxD) | 40 x 125 x 113.5 mm |
| Approximate weight | 0.55 Kg |
| Mounting information | vertical on a rail, distance from adjacent components: 40 mm top and bottom, 10 mm left and right |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
| Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
| APPROVALS AND MARKINGS |   |
For further information see PDF catalog
