| Series | ISD |
|---|---|

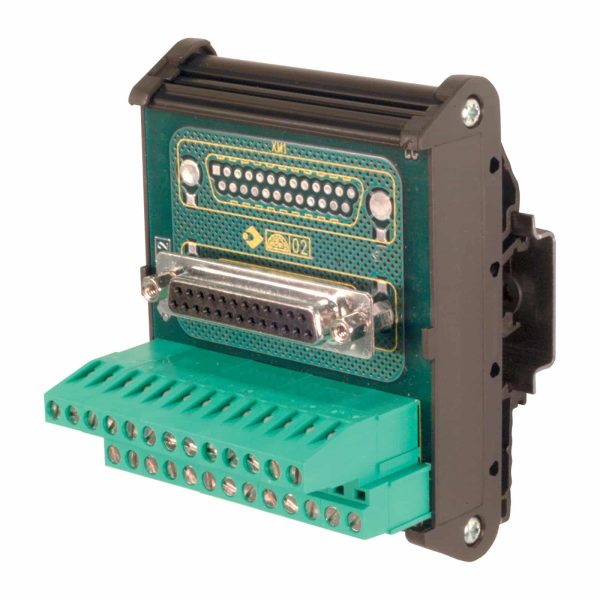

| Code | XISD25PF |
| Type | ISD25PF |
| GENERAL TECHNICAL DATA | |
| Number of poles | 25 |
| Version | D-sub female |
| Input rated voltage | 0…25 Vac / 0…60 Vdc |
| Input rated current | 2 A max |
| Operating temperature range | -20…+60°C |
| Overvoltage category / pollution degree | II / 2 |
| Protection degree | IP 00 |
| Connection terminal | 2.5 mm² screw |
| Dimensions (LxHxD) | 70x66x93 mm |
| Housing material | UL94V-0 plastic material |
| Mounting information | vertical on rails, side by side |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR003, PR903, PR005, PR911 |
| Mounting rail (IEC60715/TH35-15) | PR007, PR907, PR006, PR912 |
| APPROVALS AND MARKINGS |  |
For further information see PDF catalog
