€836.00 + VAT
In stock
In stock

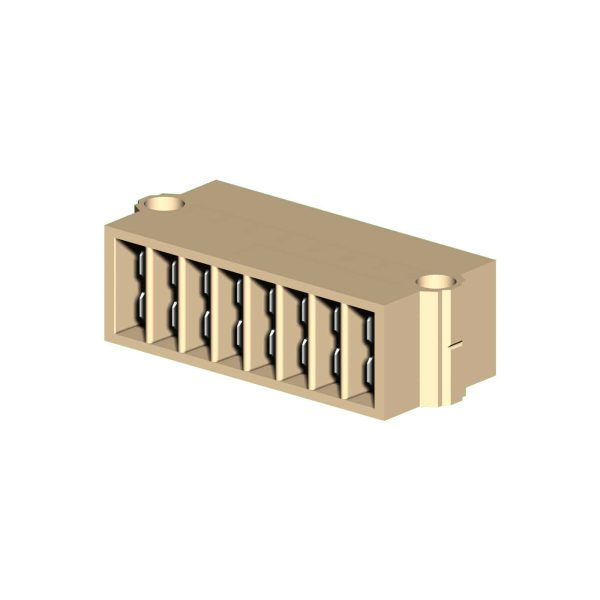

multi-pole terminal, 2.5 mm², beige
| Series | CF |
|---|---|
| Code | CF400 |
| Type | CF.8/2+2 |
| HS code | 85369010 |
| Colour | Beige |
| TECHNICAL FEATURES | |
| Function/Type | Feed-through |
| Rated cross-section | 2.5 mm² |
| Rated cross-section | |
| Connecting capacity | |
| Flexible wire | < 2.5 mm² |
| Rigid wire | ‒ |
| Wire with ferrule - ferrule type | ‒ |
| Electrical characteristics according to IEC EN standard | |
| Maximum voltage AC/DC | 500 V |
| Maximum current (rated cross-section) | 20 A |
| Caliber | ‒ |
| Electrical characteristics according to UL Standard | |
| Maximum voltage AC/DC | – |
| Maximum current (rated cross-section) | – |
| Section (min-max) | – |
| Tightening torque value (UL) | – |
| Electrical characteristics according to ATEX directive and IEC Ex standard | |
| Maximum voltage AC/DC | – |
| Maximum current (rated cross-section) | – |
| Operating temperature Min/Max | – |
| Rated impulse withstand voltage / pollution degree | 6 kV / 3 |
| Insulation stripping length | ‒ |
| Tightening torque value (nom. / max.) | ‒ |
| Dimension | 34x80x24 mm (AxBxH) |
| Insulation material temperature index (EN 60216-1) | 130 °C |
| Plastic material | Polyamide UL94V-0 |
| ACCESSORIES | |
| End section | – |
| Insulated bushing | CF/BI (cod. CF102), CF/BR (cod. CF201) (1) |
| APPROVALS AND MARKINGS |  |
For further information see PDF catalog
