New terminal with special connections, 1.5 mm²
VPC.2/S is a 1.5 mm² screw terminal block for female connectors pitch 5.08 mm with aligned outputs.
December 19, 2024
€702.00 + VAT
In stock
In stock
| Series | EFT |
|---|---|
| Code | EFT250GR |
| Type | EFT.2/S/GR |
| HS code | 85369010 |
| Colour | Grey |
| TECHNICAL FEATURES | |

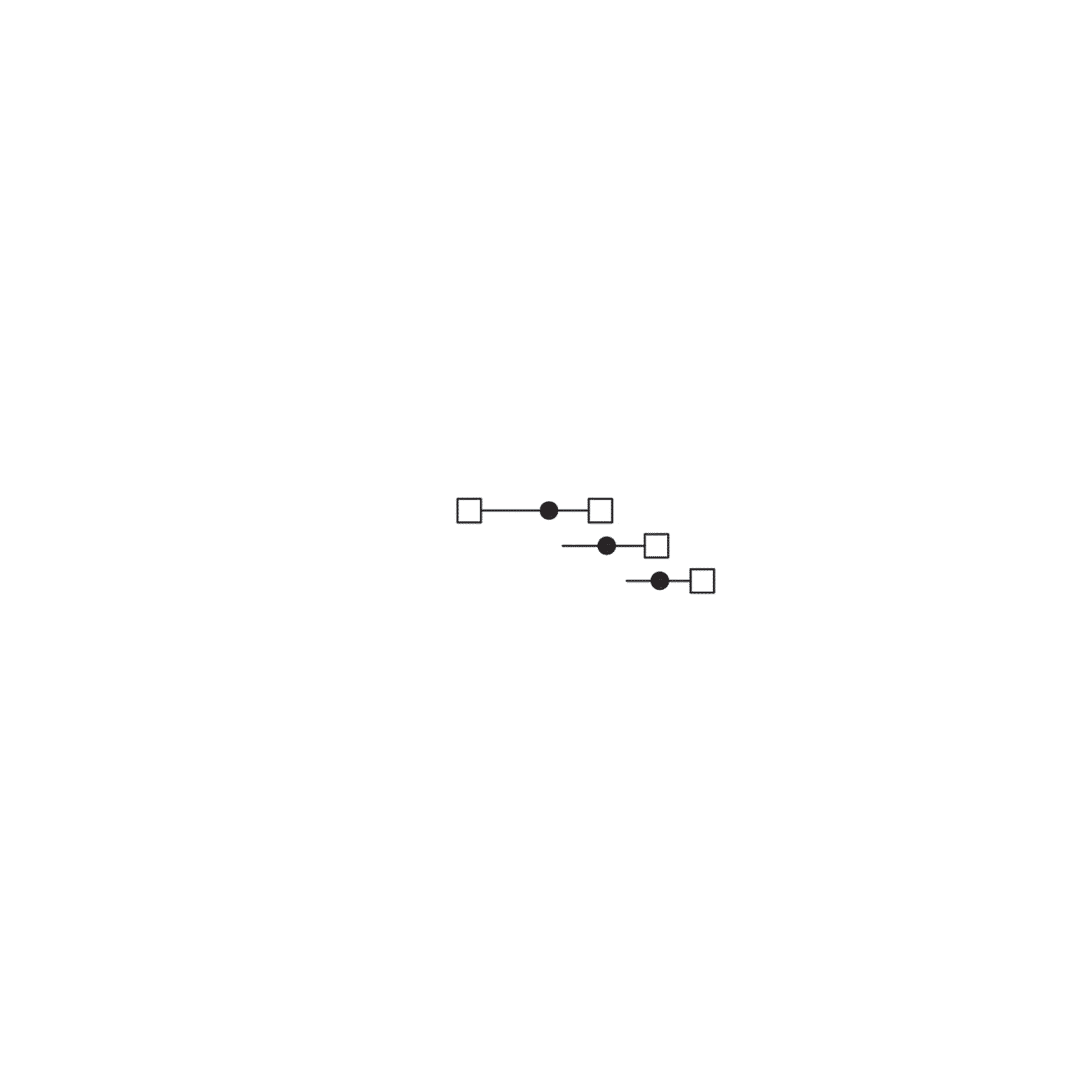

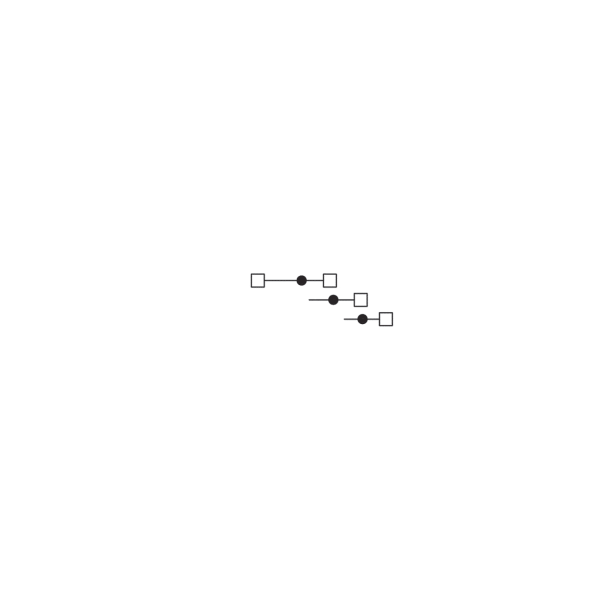

| Function/Type | 3 levels – for sensors |
| Rated cross-section | 2.5 mm² |
| Connecting capacity | |
| Flexible wire | 0.2-4 mm² |
| Rigid wire | 0.2-4 mm² |
| Wire with ferrule - ferrule type | 2.5 mm² – WP25/19 |
| Electrical characteristics according to IEC EN standard | |
| Maximum voltage AC/DC | 250 V |
| Maximum current (rated cross-section) | 23 A |
| Caliber | A3 |
| Electrical characteristics according to UL Standard | |
| Maximum voltage AC/DC | 300 V |
| Maximum current (rated cross-section) | 20 A |
| Section (min-max) | 24-12 (AWG) |
| Electrical characteristics according to ATEX directive and IEC Ex standard | |
| Maximum voltage AC/DC | 200 V |
| Maximum current (rated cross-section) | 21 A |
| Operating temperature Min/Max | -40 °C / +110 °C |
| Rated impulse withstand voltage / pollution degree | 6 kV / 3 |
| Insulation stripping length | 9 mm |
| Widht (pitch) | 5.2 mm |
| Length | 89 mm |
| Height mounted on TH35-7.5/TH35-15/G32 | 43.9 / 51.4 / – mm |
| Insulation material temperature index (EN 60216-1) | 130 °C |
| Plastic material | Polyamide UL94V-0 |
| ACCESSORIES | |
| End section | |
| Grey | EFT.2/S/PT/GR (cod. EFT251GR) |
| Blue | – |
| Thickness | 1.5 mm |
| Cross-connection | EFB.2/…/… (cod. EFB02…) |
| Rated current carrying capacity IEC/ATEX | 24 A / 18 A |
| Coloured partition plate | DFH/4/R (cod. DH04R) |
| Marking | |
| Adhesive numbering strip | TMM102105AW (cod. TMM102105AW) |
| Snap-on numbering strip | TMM102105W (cod. TMM102105W) |
| Single marking tag | CNU/8/51 (cod. NU0851S), CNU/10/51 (cod. NU1051S) |
| Single marking tag for pitch insertion | CNU/8/51 (cod. NU0851S), CNU/10/51 (cod. NU1051S) |
| End bracket | |
| TH35 screw type | BT/3 (cod. BT003) |
| TH35 snap-fit type | BTO (cod. BT007) |
| TH35 and G32 snap-fit type | BTU (cod. BT005) |
| DIN rail according to IEC 60715/TH35 | PR/3/.. |
| APPROVALS AND MARKINGS |    |
For further information see PDF catalog
The new line of EFC products with Push-in connection technology offers a fast, reliable and efficient wiring of all cable types.
REDUCTION OF INSTALLATION TIME, INCREASED PERFORMANCE
The Push-in technology allows cables and hoses to be wired with or without wire clips. Cables are directly inserted in the terminal, with no tooling required to open
the clamp spring: just pressing the wire is sufficient to provide a safe and durable electrical connection.
DIRECT PLUG-IN
Connection is so simple, precise and accurate that a switchboard can be wired with a single hand, without impacting performance. This also improves ergonomics. To connect flexible cables without a wire clip, just push
the coloured button to open the spring clip and insert the properly stripped cable.
WIRE RELEASE BUTTONS: SPEED, SIMPLICITY AND SAFETY
To remove the wire from the terminal, just press the release button with any tool to open the spring. Release buttons, highlighted by different colours, prevent operators from making mistakes or coming into contact with potentially live parts, even in settings with a high concentration of links.
VPC.2/S is a 1.5 mm² screw terminal block for female connectors pitch 5.08 mm with aligned outputs.
The new “Easy Bridge Plus” multi-pole cross connections for CBC.6 terminal blocks are available in red or blue colours for instant visibility. If needed, the upper surface can be marked with a permanent marker to highlight the presence of the pole and of the electrical connection with the underlying terminal block in pole skipping cross connection configurations.
The new products extend the range of Cabur’s Easy Fast Connection (EFC) series, spring clamp terminal blocks with push-in technology.
