€74.20 + VAT
In stock
In stock

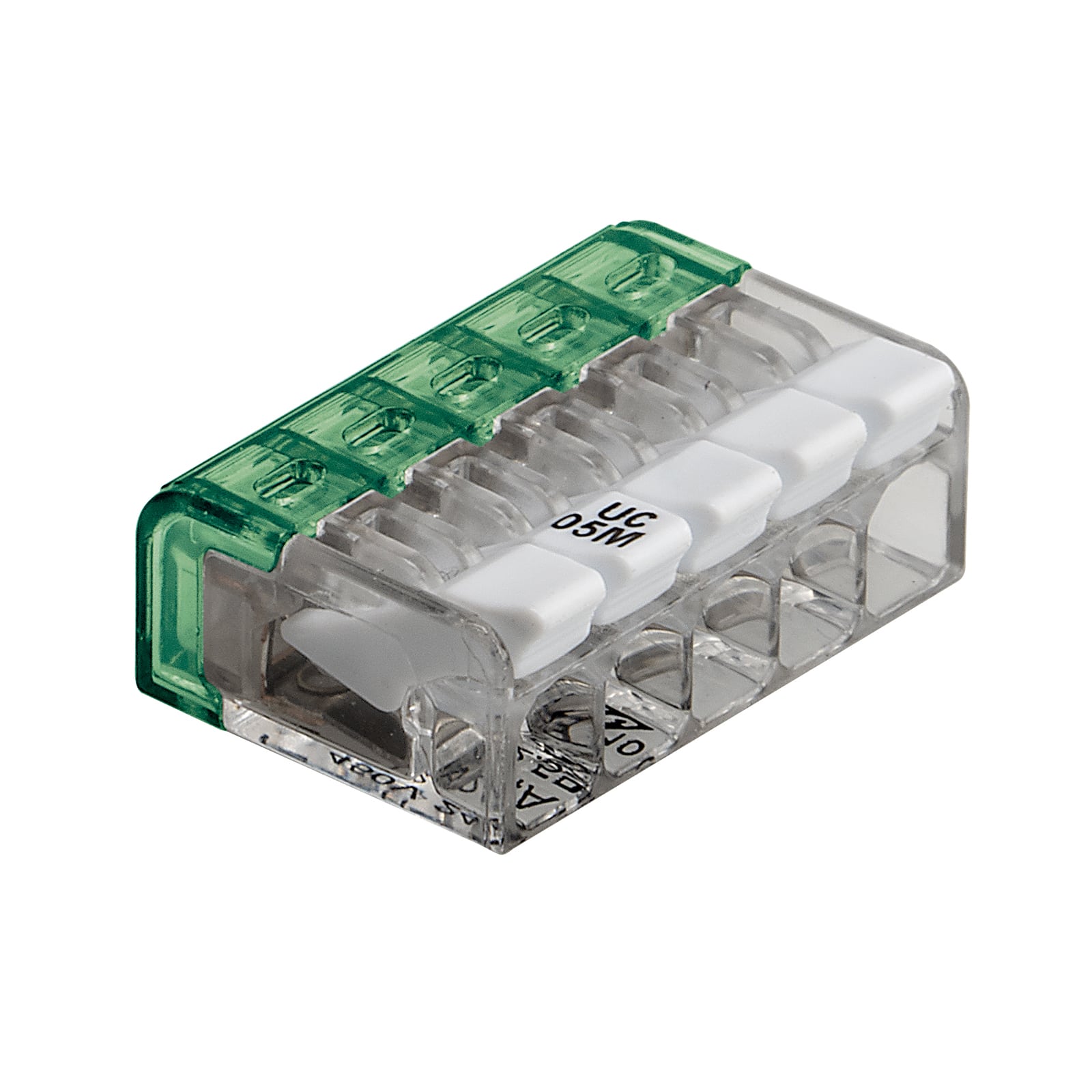

splicing spring connector with lever, for junction boxes, 2.5 mm²
| Series | UC |
|---|---|
| Code | UC05M |
| Type | UC05M |
| Colour | Transparent |
| HS code | 85369010 |
| TECHNICAL FEATURES | |
| Function/Type | Branch terminal |
| Rated cross-section | 2.5 mm² |
| Connecting capacity | |
| N poles | 5 |
| Flexible wire | |
| Rigid wire | 0.2-2.5 mm² |
| Electrical characteristics according to IEC EN standard | |
| Maximum voltage AC/DC | 450 V |
| Maximum current (rated cross-section) | 24 A |
| Caliber | ‒ |
| Electrical characteristics according to ATEX directive and IEC Ex standard | |
| Protection degree | IP20 |
| Insulation stripping length | 11 mm |
| Dimension | 24.5x17x9 mm (AxBxC) |
| Insulation material temperature index (EN 60216-1) | 85 °C |
| Plastic material | Polycarbonate UL94V-0 |
| ACCESSORIES | |
| APPROVALS AND MARKINGS |   |
For further information see PDF catalog
