EFD SERIES

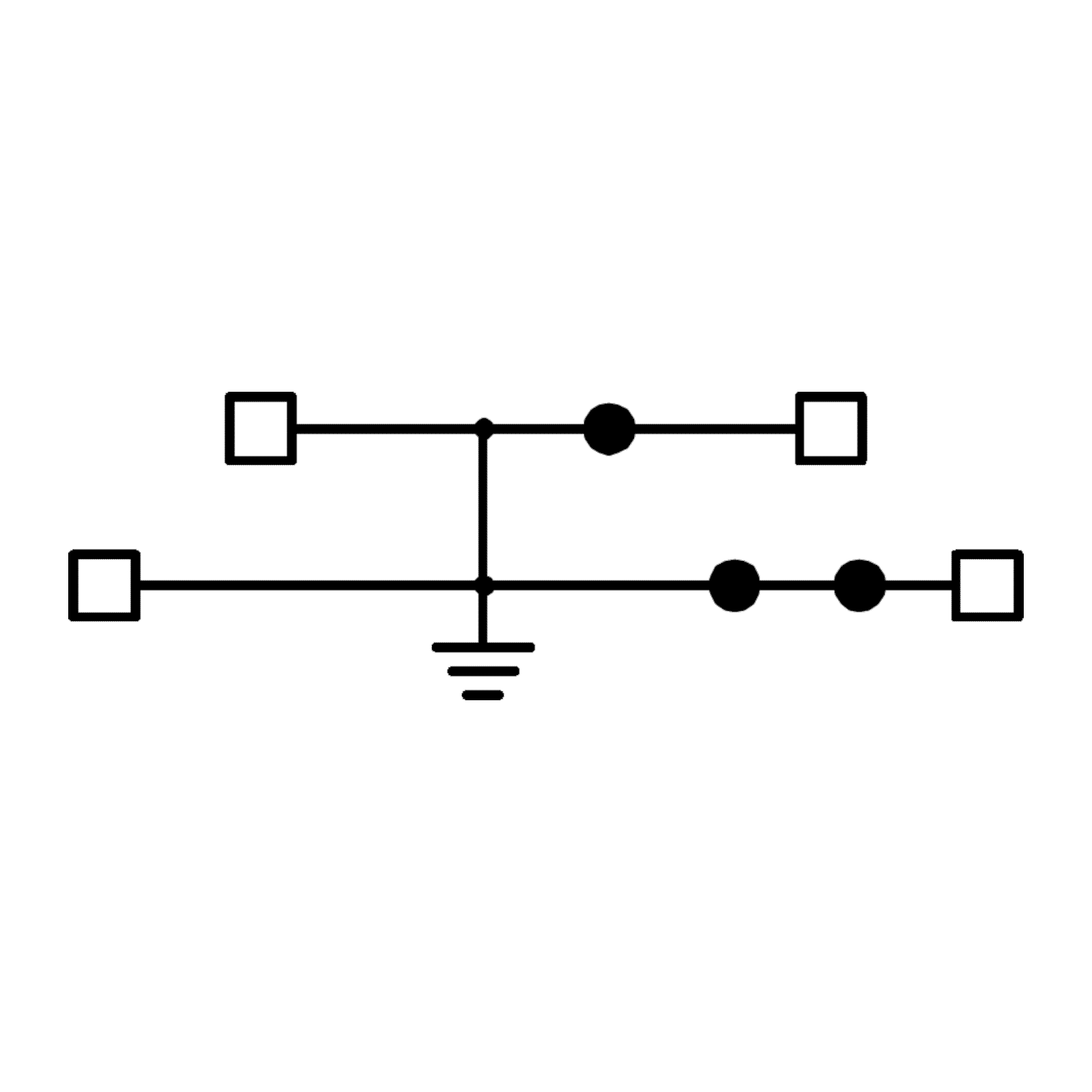

2 LEVELS EARTH CONNECTION
PUSH-IN TECHNOLOGY TERMINAL BLOCKS

EFDE100

236.80 + VAT

PCS PER PACK40

In stock

In stock

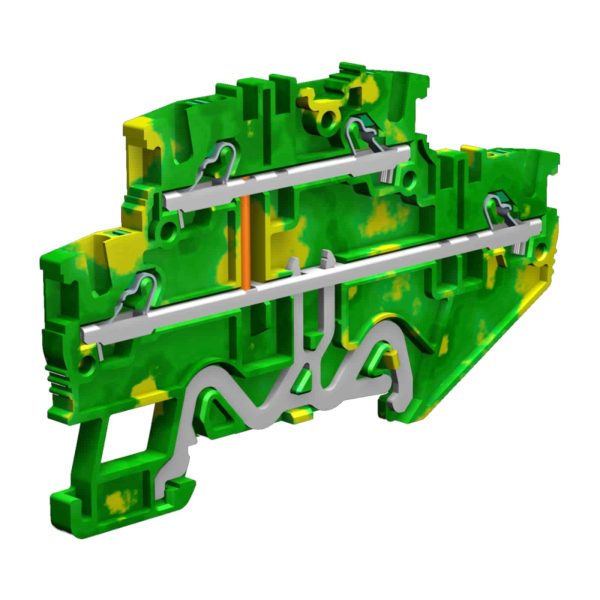

push-in terminal block 2 levels earth connection, 1.5mm²

Reduced wiring time
Wire release push button
IMQ 18 ATEX 007U
I M2 Ex eb I Mb
II 2G Ex eb IIC Gb
IECEx IMQ 18.0002U
Ex eb I Mb
Ex eb IIC Gb

Additional information

Series
Code
Type
HS code
Colour
TECHNICAL FEATURES
Function/Type
Rated cross-section
Connecting capacity
Flexible wire
Rigid wire
Wire with ferrule - ferrule type
Electrical characteristics according to IEC EN standard
Maximum voltage AC/DC
Maximum current (rated cross-section)
Caliber
Electrical characteristics according to UL Standard
Maximum voltage AC/DC
Maximum current (rated cross-section)
Section (min-max)
Electrical characteristics according to ATEX directive and IEC Ex standard
Maximum voltage AC/DC
Maximum current (rated cross-section)
Operating temperature Min/Max
Rated impulse withstand voltage / pollution degree
Insulation stripping length
Widht (pitch)
Length
Height mounted on TH35-7.5/TH35-15/G32
Insulation material temperature index (EN 60216-1)
Plastic material
ACCESSORIES
End section
Grey
Blue
Thickness
Coloured partition plate
Marking
Adhesive numbering strip
Snap-on numbering strip
Single marking tag
Single marking tag for pitch insertion
End bracket
TH35 screw type
TH35 snap-fit type
TH35 and G32 snap-fit type
DIN rail according to IEC 60715/TH35
APPROVALS AND MARKINGS

NOTES

For more details on accessories, refer to the relevant chapters

For further information see PDF catalog

CABUR EFD201BL END SECTION PT SERIES
EFD101BL
End plate colour blue, suitable for EFD.1/BL, EFD.1/CI/BL, EFDE.1
CABUR EFD201GR
EFD101GR
End plate colour grey, suitable for EFD.1/GR, EFD.1/CI/GR, EFD.1/E/GR, EFDE.1
Cabur
BT003
End bracket for rail type TH35, suitable for NU1051S, NU0851S,...
CABUR DFE01R
DFE04R
Partition plates with joint on rail, suitable for EFD.2/, EFD.2/CI/,...
CABUR PR003 MOUNTING RAILS PR SERIES
PR006
Mounting rail TH35-15 with holes
CABUR PR003 MOUNTING RAILS PR SERIES
PR907
Mounting rail TH35-15
CABUR PR003 MOUNTING RAILS PR SERIES
PR906
Mounting rail TH35-15 with holes
CABUR PR003 MOUNTING RAILS PR SERIES
PR905
Mounting rail TH35-7,5 with holes
CABUR PR003 MOUNTING RAILS PR SERIES
PR007
Mounting rail TH35-15
CABUR PR003 MOUNTING RAILS PR SERIES
PR903
Mounting rail TH35-7,5

EFC Series

The new line of EFC products with Push-in connection technology offers a fast, reliable and efficient wiring of all cable types.

Cabur EFC Easy Fast Connection

REDUCTION OF INSTALLATION TIME, INCREASED PERFORMANCE

The Push-in technology allows cables and hoses to be wired with or without wire clips. Cables are directly inserted in the terminal, with no tooling required to open
the clamp spring: just pressing the wire is sufficient to provide a safe and durable electrical connection.

DIRECT PLUG-IN

Connection is so simple, precise and accurate that a switchboard can be wired with a single hand, without impacting performance. This also improves ergonomics. To connect flexible cables without a wire clip, just push
the coloured button to open the spring clip and insert the properly stripped cable.

WIRE RELEASE BUTTONS: SPEED, SIMPLICITY AND SAFETY

To remove the wire from the terminal, just press the release button with any tool to open the spring. Release buttons, highlighted by different colours, prevent operators from making mistakes or coming into contact with potentially live parts, even in settings with a high concentration of links.
