Original price was: €644,40.€354,42Current price is: €354,42. + VAT
Temporarily not available for online purchase. Contact our sales department.
Temporarily not available for online purchase. Contact our sales department.

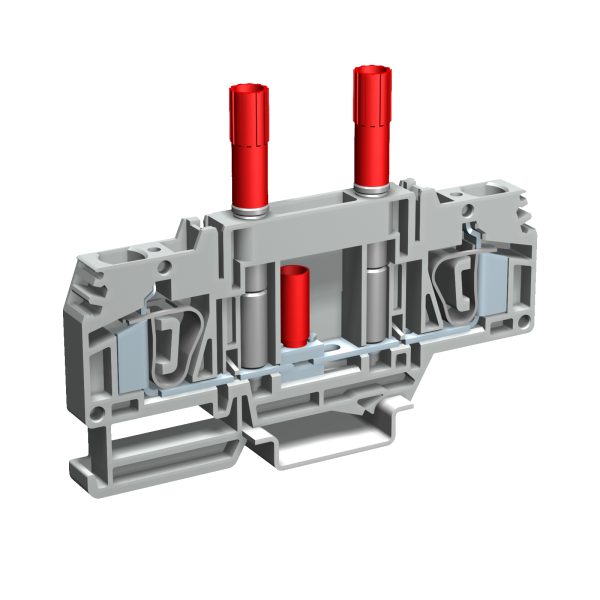

| Series | HMS – HSCB |
|---|---|
| Code | HB210GR |
| Type | HSCB.6/DD/GR |
| HS code | 85369010 |
| Colour | grey |
| TECHNICAL FEATURES | |
| Function/Type | Disconnector |
| Rated cross-section | 6 mm² |
| Connecting capacity | |
| Flexible wire | 0.2-10 mm² |
| Rigid wire | 0.2-10 mm² |
| Wire with ferrule - ferrule type | 6 mm² – WP60/20 |
| Electrical characteristics according to IEC EN standard | |
| Maximum voltage AC/DC | 800 V |
| Maximum current (rated cross-section) | 41 A |
| Caliber | A5 |
| Electrical characteristics according to UL Standard | |
| Maximum voltage AC/DC | 600 V |
| Maximum current (rated cross-section) | 35 A |
| Section (min-max) | 24-8 (AWG) |
| Rated impulse withstand voltage / pollution degree | 8 kV / 3 |
| Insulation stripping length | 13 mm |
| Width (pitch) | 8.2 mm |
| Length | 97 mm |
| Height mounted on TH35-7.5/TH35-15/G32 | 48 / 56 / – mm |
| Insulation material temperature index (EN 60216-1) | 130 °C |
| Plastic material | Polyamide UL94V-0 |
| ACCESSORIES | |
| End section | |
| Grey | HSCB.6/PT/GR (cod. HB201GR) |
| Blue | – |
| Thickness | 1.5 mm |
| Cross-connection | |
| Model A) | PTC/8/… (cod.PTC08…) |
| Model B) | ‒ |
| Rated current carrying capacity IEC/ATEX | 41 A |
| Cross-connection identification strip | PTC/SP (cod. PTC0990) |
| Coloured partition plate | ‒ |
| Cross-connection barrier | DFM/500 (cod. DF500) |
| Test plug socket | 2 HB205R included |
| Test plug | SDD/2 (cod. DD002) |
| Modular test plug | ‒ |
| End section for modular test plug | ‒ |
| Screw and plate for short-circuit | |
| Screw and sleeve | – |
| 2 poles plate | HSCB/6/PO/2 (cod. HB203) |
| 4 poles plate | HSCB/6/PO/4 (cod. HB204) |
| Marking | |
| Single marking tag | CNU/8/51 (cod. NU0851S) |
| Single marking tag for pitch insertion | – |
| End bracket | |
| TH35 screw type | BT/3 (cod. BT003) |
| TH35 snap-fit type | BTO (cod. BT007) |
| TH35 and G32 snap-fit type | BTU (cod. BT005) |
| DIN rail according to IEC 60715/TH35 | PR/3/.. |
| APPROVALS AND MARKINGS |       |
For further information see PDF catalog
