Electromechanical relay modules single channel, input rated: 24 Vdc, input chanals: 1 not pluggable, contact type: SPST(NO)
Series | |
---|---|
Code | XRFA024D |
Type | RFA024D (1) |
HS code | 85364190 |
INPUT TECHNICAL DATA | |
Input rated voltage | 24 Vdc ±10% |
Pull in / drop out voltage type | 18.4 V / 2.4 V |
Current consumption | 15 mA ±10% |
Turn ON / OFF time | 15 ms / 5 ms |
Protection circuit | Free-wheel diode, Reverse polarity |
Connection terminal | 2.5 mm² screw |
Input channels | 1 not pluggable |
OUTPUT TECHNICAL DATA | |
Contact type | SPST(NO), 1 Form A (NO), AgSnO2 |
Nominal current | 5 A (250 Vac) |
Continuous current | 10 A |
Min applicable load | 100 mA / 5 Vdc |
Connection type | |
GENERAL TECHNICAL DATA | |
Operating temperature range | -20…+70°C |
Input / output isolation | 2.5 kVac / 60 s |
Protection degree | IP 00 |
Overvoltage category / pollution degree | II / 2 |
Status indication | LED "Input" |
Housing material | UL94V-0 plastic material |
Dimensions (LxHxD) | 12x77x52 mm |
Approximate weight | 30 g |
Mounting information | on a rail, side by side |
ACCESSORIES | |
Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
Spare part relay | 8904075 |
APPROVALS AND MARKINGS |
For further information see PDF catalog
The new devices are specifically designed for the industrial applications and complete the current range of unmanaged Ethernet switches for DIN-rail.
These are 1.2Ah, 3.4Ah, 7.2Ah and 12Ah battery module holders.

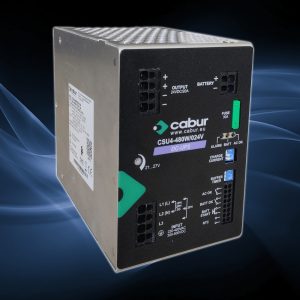

This product is the technical evolution of the current XCSUPS1 (24Vdc) of the Cabur CSU series battery charger range.
