Original price was: €102,00.€56,10Current price is: €56,10. + VAT
In stock
In stock
| Series | EFC |
|---|---|

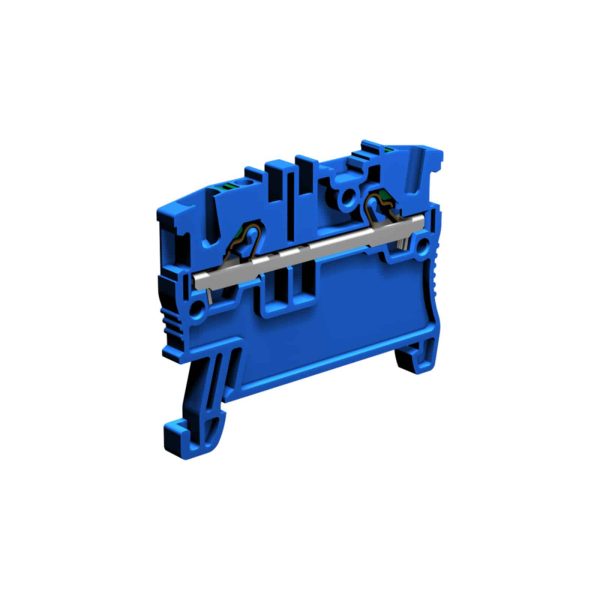

| Code | EFC100BL |
| Type | EFC.1/BL |
| HS code | 85369010 |
| Colour | Blue |
| TECHNICAL FEATURES | |
| Function/Type | Feed-through |
| Rated cross-section | 1.5 mm² |
| Connecting capacity | |
| Flexible wire | 0.2-1.5 mm² |
| Rigid wire | 0.2-1.5 mm² |
| Wire with ferrule - ferrule type | 1.5 mm² – WP15/14 |
| Electrical characteristics according to IEC EN standard | |
| Maximum voltage AC/DC | 630 V |
| Maximum current (rated cross-section) | 17.5 A |
| Caliber | A1 – B1 |
| Electrical characteristics according to UL Standard | |
| Maximum voltage AC/DC | |
| Maximum current (rated cross-section) | 15 A |
| Section (min-max) | 26-14 (AWG) |
| Electrical characteristics according to ATEX directive and IEC Ex standard | |
| Maximum voltage AC/DC | 440 V |
| Maximum current (rated cross-section) | 17 A |
| Operating temperature Min/Max | -40 °C / +110 °C |
| Rated impulse withstand voltage / pollution degree | 6 kV / 3 |
| Insulation stripping length | 8 mm |
| Width (pitch) | 3.5 mm |
| Length | 44.9 mm |
| Height mounted on TH35-7.5/TH35-15/G32 | 36.5 / 44 / – mm |
| Insulation material temperature index (EN 60216-1) | 130 °C |
| Plastic material | Polyamide UL94V-0 |
| ACCESSORIES | |
| End section | |
| Grey | EFC.1/PT/GR (cod. EFC101GR) |
| Blue | EFC.1/PT/BL (cod. EFC101BL) |
| Thickness | 1.5 mm |
| Cross-connection | EFB.1/…/… (cod. EFB01…) |
| Rated current carrying capacity IEC/ATEX | 17.5 A / 16 A |
| Coloured partition plate | DFE.1+1/R (cod. DFE01R) |
| Marking | |
| Adhesive numbering strip | TMM102105AW (cod. TMM102105AW) |
| Snap-on numbering strip | TMM102105W (cod. TMM102105W) |
| Single marking tag | CNU/8/35 (cod. NU0835S), CNU/10/35 (cod. NU1035S) |
| Single marking tag for pitch insertion | CNU/8/35 (cod. NU0835S), CNU/10/35 (cod. NU1035S) |
| End bracket | |
| TH35 screw type | BT/3 (cod. BT003) |
| TH35 snap-fit type | BTO (cod. BT007) |
| TH35 and G32 snap-fit type | BTU (cod. BT005) |
| DIN rail according to IEC 60715/TH35 | PR/3/.. |
| APPROVALS AND MARKINGS |   |
For more information, download the PDF catalog
EFC Series
The EFC terminal block line (Easy Fast Connection) with Push-in connection technology guarantees fast, reliable, and efficient wiring of any type of cable.
REDUCED INSTALLATION TIME, IMPROVED PERFORMANCE.
Push-in technology allows wiring of rigid and flexible cables, with or without ferrules. The cable is inserted directly into the terminal block, and no tools are required to open the clamping spring—simply push in the conductor to ensure a secure and long-lasting electrical connection.
DIRECT PLUG-IN CONNECTION.
The connection is so simple, precise, and accurate that panel wiring can be carried out with one hand, without affecting performance and while improving work ergonomics. To connect flexible cables without ferrules, simply press the colored button to open the clamping spring and insert the properly stripped cable.
CONDUCTOR RELEASE BUTTONS: SPEED, SIMPLICITY, AND SAFETY.
To remove the conductor from the terminal block, simply press the release button with any tool to open the spring. Marked with different colors, the release buttons prevent operator errors and accidental contact with potentially live parts, even in installations with a high density of connections.
In addition to a custom design service, Cabury offers terminal blocks assembly based on your specifications.
