Fly 4-6 mm² connectors

IS24241N

NEW

401.00 + IVA

PCS PER PACK100

In stock

In stock

Additional information

Series
Code
Type
TECHNICAL FEATURES
Application
Connector type
Max. applicable voltage
Max. applicable current
Cable section
PIN diameter
Pliers to use
Movable matrix
Fixed matrix
Matrix to use
PIN material
Insulation material
Contact resistance Rc
Nut Cap locking force
Operating temperature range
Protection degree
Flame class
Packaging
ACCESSORIES
Open-end spanner and unlocking tool
cod. unlocking tool
Quantity / Package
Caps
Male
Female
Operating temperature range
Protection degree
Flame class
Quantity / Package
SPARE COMPONENTS
Plastic shell
Cod. Shell
Quantity / Package
Metallic PIN wound on reel
Cod. pin
Quantity / Package
APPROVALS AND MARKINGS

NOTES

(1) IS14240N replace the code IS14240.
(2) IS24241N replace the code IS24241.

For further information see PDF catalog

Cabur XCONPA557P
XCONPA557P
Temperature converter IN: potentiometers 0...1kΩ - 0...6kΩ / OUT: 3...
EFD110GR
push-in terminal block, 2 levels interconnected, 1.5mm², grey
Cabur ISPD1500DC3P
ISPD1500DC3P
DC surge protection device, type II, nominal voltage: 1500 V
EFD100BL
push-in terminal block 2 levels feed-through, 1.5mm², blue
EFD100GR
push-in terminal block 2 levels feed-through, 1.5mm², grey
QBLOK1P160E
unipolar distribution terminal board 160A, grey
QBLOK1P125E
unipolar distribution terminal board 125A, grey
QBLOK1P080E
unipolar distribution terminal board 80A, grey
QBLOK1P500E
unipolar distribution terminal board 500A, grey
QBLOK1P400E
bipolar distribution terminal block, 100A, grey

Cabur Solar “Line 4” connectors allow simple and effective connections.
The Line 4 connectors are composed by:

  • Flying connectors, male and female
  • Panel connectors, male and female
  • Y connectors

All Cabur Solar “Line 4” connectors are supplied with caps and relative accessories.
In order to assure a connection compliance with standard, Cabur reccomend use of pliers IS3161N.
The use of this tools is mandatory for guaranteed a excelent connection and the duration of the plant.

FAST, SIMPLE, AND EFFECTIVE: CONNECTION IN JUST THREE STEPS

  1. Insert the stripped wire into the contact to be
    crimped -CRIMP IT-.
  2. Insert the wire complete with contact into the connector and push hard until you hear the typical CLICK which indicates that the plastic and metal parts are hooked together. Do not make any joints without checking that the plastic and metal parts are hooked together.
  3. Screw on the wire gland washer manually until it is firmly homed to guarantee IP67.

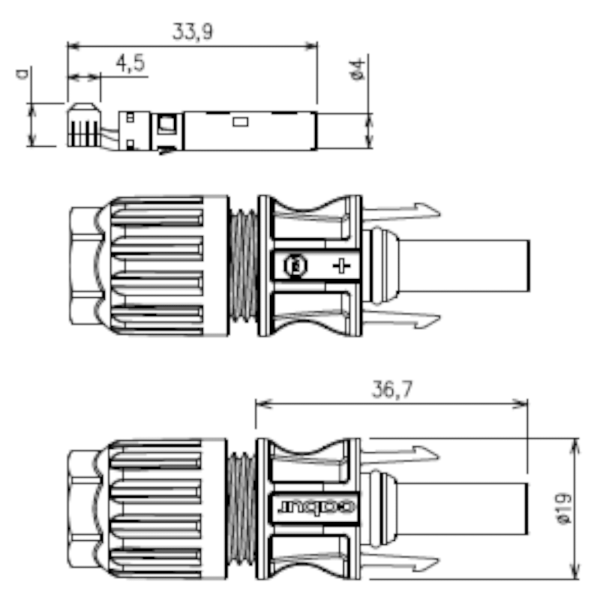

LINE 4 FLYING MALE - FEMALE CONNECTORS

The fly connectors, both male and female, are made by four main parts:

  1. Metallic PIN
  2. Rubber washer
  3. Rigid PPO plastic washer
  4. Main body made of PPO plastic
  1. Pin is a metallic contact made of tinned copper composed by two metallic wings allowing cable tightening via crimping action. The pin wings should be bending around the cable core. This action should be done with the appropriate Cabur Solar accessories.

    {%CAPTION%}
  2. Rubber washer is used to protect internal part of the connector, thus preventing penetration of external agents such as humidity, dust, and oils. This is achieved by pinching the electric wire insulating sleeve.

    {%CAPTION%}
  3. PPO plastic washer has a conical cavity that, after being screwed into the main body of the connector, forces the reeds together, compressing the rubber sheath into the wire insulation and hence acting to help ensure IP67 protection.

    {%CAPTION%}
  4. The main body holds the metallic PIN crimped onto
    the cable.

    {%CAPTION%}

Connection from male and female connectors is made having the male metallic PIN paired with the female PIN, vice versa happens for the plastic shells.
Female connector has one red rubber ring which acts as insulating washer against the penetration of external atmospheric agents.
Male and female connectors are hooked together mechanically by means of two elastic wings on the female connector which must be inserted in the male connectors insulating body special slots.



MALE-FEMALE PANEL CONNECTORS OF LINE 4

Fig. 5 – Esploso del corpo connettore. (il prodotto viene fornito assemblato)

The connector are made by three parts:

  1. Metallic PIN
  2. Rigid PPO hexagonal plastic washer
  3. Main body made of PPO plastic
  1. Metallic PIN is similar to the one of the flying version
  2. Hexagonal nut allows locking the connector on panel surface. Pay attention to the strength used to block the connector as, if excessive, could damage the connector.
  3. Main body made of PPO plastic is similar to the one of the flying version.
