Original price was: €199,50.€109,73Current price is: €109,73. + VAT
In stock
In stock
| Series | COOL POWER |
|---|---|
| Code | XCSF120C |
| Type | CSF120C |
| HS code | 85044083 |
| INPUT TECHNICAL DATA | |
| Input rated voltage | 120–230 Vac |
| Input voltage AC | 90…264 Vac |
| Input voltage DC | 100…345 Vdc (derating Uin<130Vdc) |
| Frequency | 47…63 Hz |
| Current consumption | 1.9 A (120 Vac) / 1.1 A (230 Vac) |
| Inrush peak current | 20 A |
| Power factor | > 0.65 |
| Internal protection fuse | T 3.15 A |
| External protection on AC line | MT: C-4 A / Fuse: T 4 A |
| OUTPUT TECHNICAL DATA | |
| Output voltage range | 24 Vdc |
| Output adjustable range | 23…27.5 Vdc |
| Continuous current | 5 A at 45°C |
| Overload limiting | 8 A for >30 s |
| Short circuit peak current | 15 A for 50 ms |
| Ripple @ nominal ratings | 30 mVpp |
| Hold up time | 17 ms (120 Vac) / 72 ms (230 Vac) |
| Status indication | LED "DC OK" / LED "Alarm" |
| Alarm contact | dry contact, max. 1A @ 24 Vdc (Uout >21.6 Vdc) |
| Parallel connection | possible |
| Redundant parallel connection | possible with external ORing diode |
| GENERAL TECHNICAL DATA | |
| Efficiency | 86% (120 Vac) / 90% (230 Vac) |
| Dissipated power | 19 W (120 Vac) / 13 W (230 Vac) |
| Operating temperature range | –20…+60°C (derating -1.9 W >45°C) |
| Input / output isolation | 3 KVac / 60 s (SELV output) |
| Input / ground isolation | 1.5 kVac / 60 s |
| Output / ground isolation | 0.5 kVac / 60 s |
| Safety Standard | EN 62368-1, UL508 |
| EMC Standard | EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN 61000-6-4 |
| Overvoltage category / pollution degree | II / 2 |
| Protection degree | IP 20 |
| Connection terminal | 2.5 mm² / 2.5 mm² |
| Housing material | aluminium |
| Dimensions (LxHxD) | 40x115x130 mm |
| Approximate weight | 400 g |
| Mounting information | vertical on a rail, 10 mm from adjacent components |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
| Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
| APPROVALS AND MARKINGS |      |
For more information, download the PDF catalog

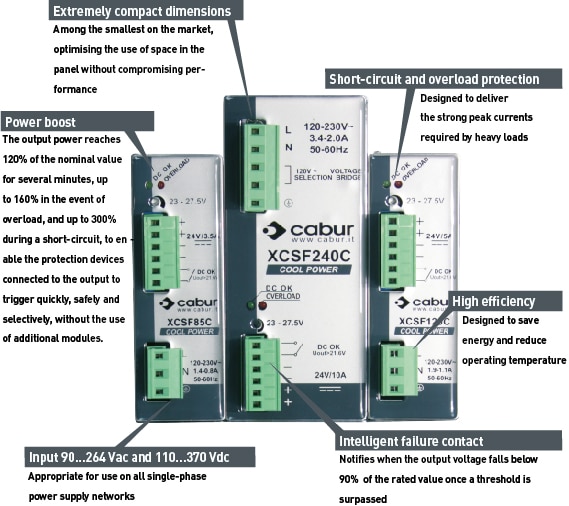

Single-Phase DIN-Rail Switching Power Supplies
Designed specifically for applications in industrial automation and process control panels. They are capable of delivering +60% to +80% of nominal current for extended periods while maintaining a constant output voltage. They feature a threshold-controlled alarm contact that activates when the voltage drops below 90% of the nominal value. Thanks to these characteristics and multiple international certifications, this series allows designers to meet the requirements of the Machinery Directive EN 60204-1, ensuring fast, safe, and selective intervention of connected output protections, thus maintaining continuity of service for other parts of the system.
Recommended Applications
Main Features
New 48 Vdc and 72…85 Vdc Models, designed to reliably power DC motors. These models:
Ideal for applications where service continuity is essential: industrial automation, process control, alarm systems, and remote monitoring.
The new range is part of the Easy Power series and represents an advanced solution in the field of industrial power supplies. It is designed for standard applications that require an excellent price/performance ratio, small footprint and high power density, an extended operational temperature range and high energy efficiency.
