| Series | Triple Power |
|---|---|
| Code | XCSG960C |
| Type | CSG960C |
| HS code | 85044083 |
| INPUT TECHNICAL DATA | |
| Input rated voltage | 3x 400–500 Vac |
| Input voltage AC | 340…550 Vac |
| Frequency | 47…63 Hz |
| Current consumption | 2.2 A (400 Vac) / 1.1 A (500 Vac) |
| Inrush peak current | 20 A |
| Power factor | > 0.65 |
| External protection on AC line | MT: C-10 A / Fuse: T 10 A |
| OUTPUT TECHNICAL DATA | |
| Output voltage range | 24 Vdc ±1% |
| Output adjustable range | 24…28 Vdc |
| Continuous current | 40 A a 50°C |
| Overload limiting | 44 A for >5 s |
| Short circuit peak current | 63 A for 5 s |
| Ripple @ nominal ratings | 100 mVpp |
| Hold up time | 10 ms (400 Vac) / 15 ms (500 Vac) |
| Status indication | LED "DC OK" / LED "Alarm" |
| Alarm contact | dry contact, max. 1A @ 24 Vdc (Uout >21.6 Vdc) |
| Parallel connection | possible |
| Redundant parallel connection | possible with external ORing diode |
| GENERAL TECHNICAL DATA | |
| Efficiency | 92% (400 Vac) / 92% (500 Vac) |
| Dissipated power | 80 W (400 Vac) / 80 W (500 Vac) |
| Operating temperature range | –20…+60°C (derating -18 W >45°C) |
| Input / output isolation | 3 KVac / 60 s (SELV output) |
| Input / ground isolation | 2 kVac / 60 s |
| Output / ground isolation | 0.5 kVac / 60 s |
| Safety Standard | EN 62368-1, UL508 |
| EMC Standard | EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN 61000-6-4 |
| Overvoltage category / pollution degree | II / 2 |
| Protection degree | IP 20 |
| Connection terminal | 4 mm² / 10 mm² |
| Housing material | aluminium |
| Dimensions (LxHxD) | 80x127x139 mm |
| Approximate weight | 1.2 Kg |
| Mounting information | vertical on a rail, 10 mm from adjacent components |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
| Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
| Marking tag | TAP207A , TAP128A , TAP178A , TAP209A |
| APPROVALS AND MARKINGS |    |
For more information, download the PDF catalog

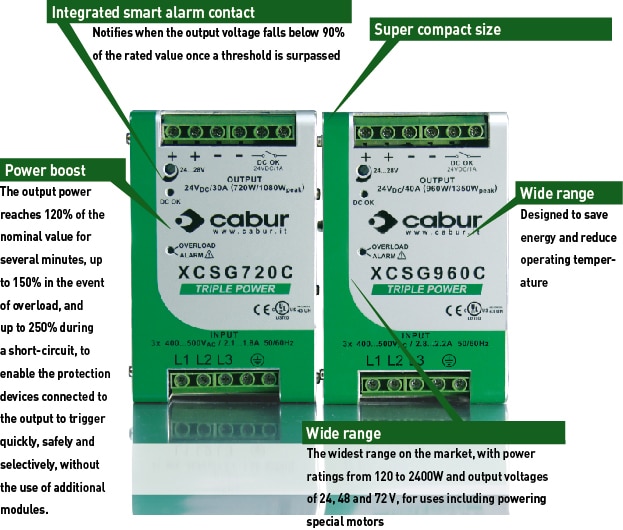

Three-Phase Switching Power Supplies 400…500 Vac for Industrial Automation Applications. These three-phase switching power supplies are capable of delivering more than +50% of the rated current for an extended period, while maintaining a stable output voltage and ensuring continuous power to the system. They are equipped with a voltage-threshold controlled alarm contact that switches when the output voltage drops below 90% of the nominal value.
Thanks to these features and the numerous international certifications, this series of power supplies enables designers to meet the requirements of the Machinery Directive EN 60204-1, ensuring fast, safe, and selective tripping of the protections connected on the output side, thereby guaranteeing service continuity to the remaining parts of the system.
Recommended Applications
Main Features
Special Power Supplies for DC and Brushless Motors and Related Drives
Ideal for applications where service continuity is essential: industrial automation, process control, alarm systems, and remote monitoring.
The new range is part of the Easy Power series and represents an advanced solution in the field of industrial power supplies. It is designed for standard applications that require an excellent price/performance ratio, small footprint and high power density, an extended operational temperature range and high energy efficiency.
