€255.40 + VAT
In stock
In stock

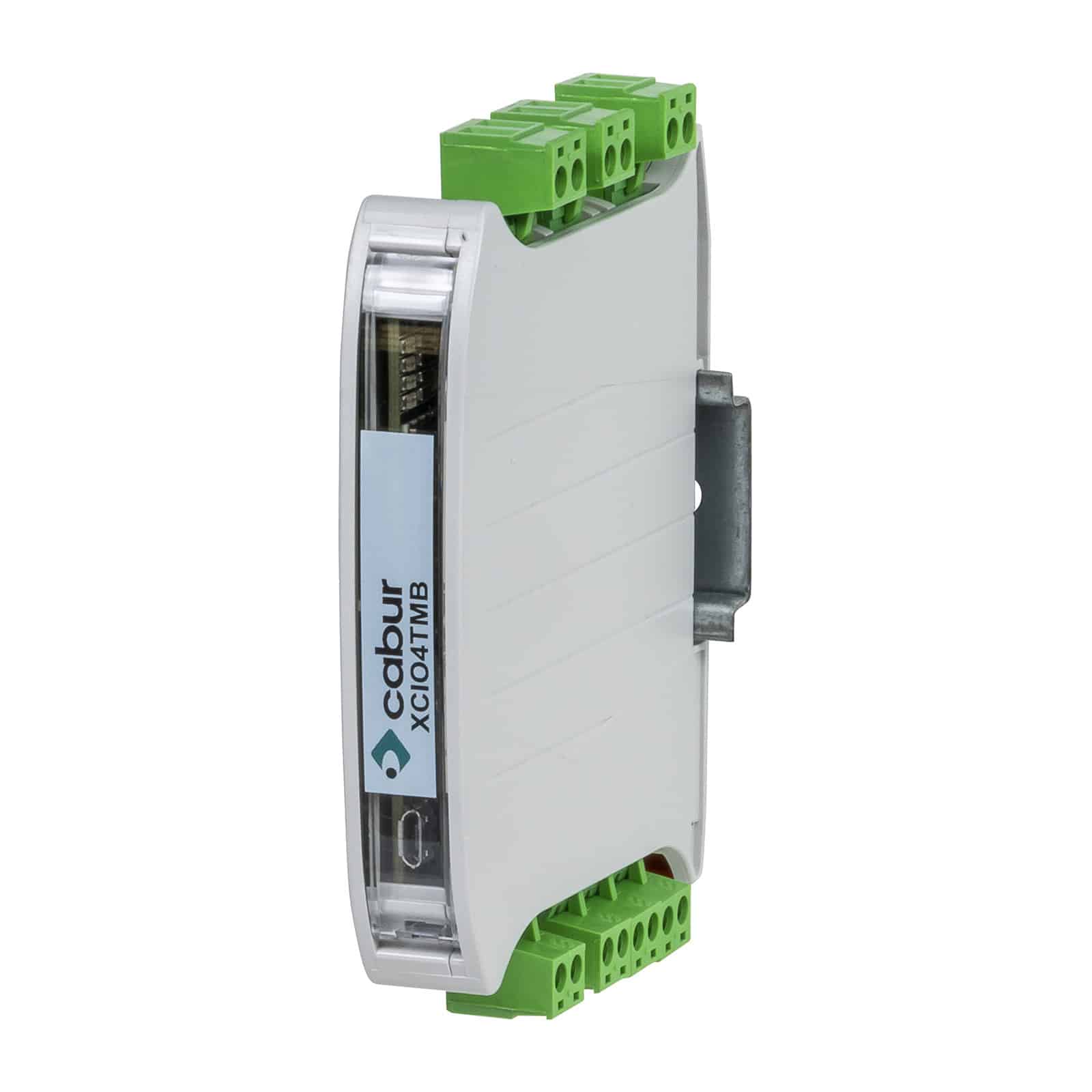

Analogue signal converter IN: thermocouple / OUT: Modbus RTU
| Series | CIO |
|---|---|
| Code | XCIO4TMB |
| Type | CIO-4T-MB – |
| HS code | 85043129 |
| INPUT TECNHICAL DATA | |
| Signal type IN | thermocouples (J, K, S, R, B, E, T, N), 100mV |
| Input range IN | -270…+1820°C based on sensor (2) |
| Input impedance IN | >1 MΩ |
| Parametrization IN | Software CaburLab (1) |
| OUTPUT TECHNICAL DATA | |
| Signal type OUT | Modbus RTU |
| Status indication | LED |
| GENERAL TECHNICAL DATA | |
| Power supply voltage | 24 Vdc (8…30 Vdc) |
| Current consumption | 100 mA (24 Vdc) |
| Accuracy | 0.1% FSR (23°C) |
| Linearity error | < 0.1% FS |
| Transmission frequency | 10 Hz |
| Resolution | 13 bits |
| Baud rate | 1200 – 230400 bps (programmable) |
| Parity | None, Odd, Even, Mark, Space |
| Operation temperature range | -20…+70°C |
| Insulation | 1.5 kVac / 60 s |
| Insulation type | 3-way (IN / OUT / power) |
| EMC Standard | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 |
| Overvoltage category / pollution degree | II / 2 |
| Protection degree | IP 20 |
| Connection terminal IN / OUT | 2.5 mm² / 2.5 mm² (screw) |
| Housing material | UL94V-0 plastic material |
| Dimensions (LxHxD) | 101x79x17.5 mm |
| Approximate weight | 100 g |
| Mounting information | vertical on a rail, distance 5 mm from adjacent components |
| ACCESSORIES | |
| Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
| APPROVALS AND MARKINGS |  |
For further information see PDF catalog
Modbus-RTU programmable analog converters
The XCIO4 devices are analog converters, fully programmable through a PC application and with ModBus communication inter-face.
There are different models:
Each device has up to four independent channels, it is remotely configurable through the ModBus interface and in alternative with a uUSB port with no need for additional power supply.
The devices are fully programmable by means of CaburLab software application or directly accessing the ModBus registers by means of a PLC.
The XCIO4RLYMB can be configured to have a default safe condition called safestate that allows to set the state of the output when the power is off and/or when the device is remotely controlled.
Communication bridges
The XBRI series is based on two different interconnection bridge typologies.
The XBRIRS485CP is a gateway which allows the connection between RS-485 interconnected devices towards a ModBus-TCP over Ethernet network .
The XBRIRS485ET and XBRIRS485WI are bridges with the capability to connect RS-485 devices to a 10/100 Base T Ethernet network based upon TCP/IP.
The Ethernet – RS485 communication passe through a virtual communication interface. The bridges parameters can be configu-red through a dedicate telnet interface (IP address, subnet mask, etc.).
Ethernet Switches
The XSWET5UP and XSWET5UP series of Din-rail Entry-level Unmanaged Ethernet Switches for industrial applications are highly compacted 5 and 8-port Ethernet switches that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, RJ45 ports.
The XSWET5UP and XSWET5UP switches are rated to operate at temperatures ranging from -10 to 60°C. The switches can be easily installed on a DIN-rail as well as multi-directional panel mounting.
The new CSE2 range is part of the Easy Power series, which includes industrial power supplies designed for standard applications with an excellent price/performance ratio.
Today, Cabur’s “Solutions for connection in electrical panels” line offers a wide variety of products, suitable for applications in the industrial, naval and railway sectors, renowned for their reliability even in extreme conditions of use.
The new CSE range is part of the Easy Power series, which includes industrial power supplies designed for standard applications that offer an excellent price/performance ratio.
